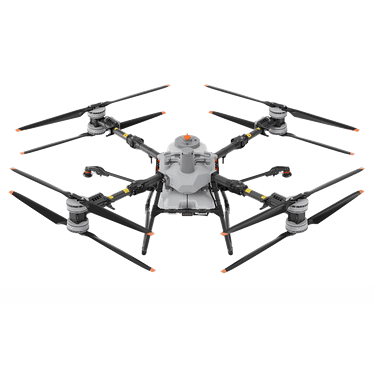

DJI Agras T100
RM73999.00

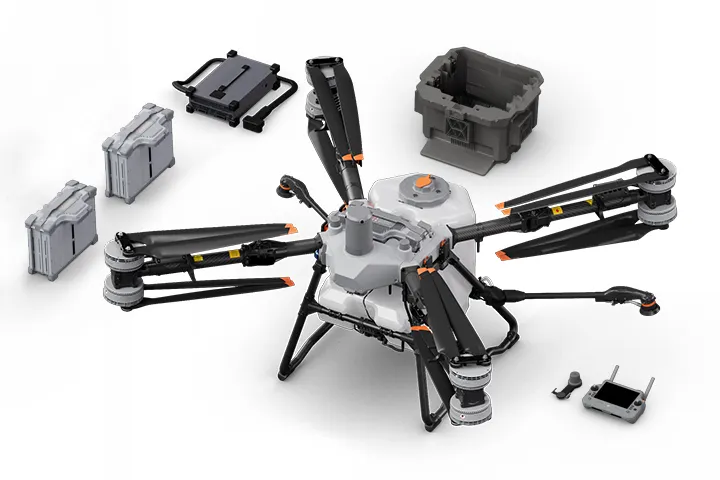

Standard Package
T100 Aircraft x1
T100 Remote Controller x1
DB2160 Battery Cooling Fan x1
DB2160 Intelligent Flight Battery x2
C12000 Intelligent Battery Charger x1
Generator Package
T100 Aircraft x1
T100 Remote Controller x1
DB2160 Battery Cooling Fan x1
DB2160 Intelligent Flight Battery x2
D14000iE Multifunctional Inverter Generator x1
Specification
Weight: 75 kg (standard with 2 nozzles)
Max Take-off Weight: 175 kg (spraying with 2 nozzles) ; 175 kg (spreading); 170 kg (dual-battery lifting system)
Propellers: 8 pairs, 62-inch carbon fiber composite
Spray Tank Volume: 150 L
Sprinkler Effective Spray Width: 5-13 m
Max Flow Rate: 30L/min (2 nozzles) ; 40L/min (4 nozzles)
Spreading Tank Volume: 100 L
Max spreading Discharge Rate: 400kg/min (compound fertilizer)
Lifting Load Capacity: 100 kg
Lifting Cable Length: 10 m
Safety System: Laser Radar, Front/Downward/Rear Radar, Quad Vision System, FPV Camera
DB2160 Battery
Capacity: 41000 mAh
Nominal Voltage: 52 V
D14000iE Generator
Output Channels: DC recharge output 42 - 61.6 V/11500 W ; Air-cooled radiator charge 12 V/6 A ; AC output 220 V/1500 W
Recharge Time: 8-9 mins (DB2160 Intelligent Flight Battery, 30% - 95% charge)
Fuel Type and Capacity: 30L unleaded gasoline
C12000 Charger
Input Voltage: 175 - 520 V (Three-phase AC input) ; 200 - 264 V (Single-phase AC input)
Output Voltage: 62 V
Rated Power: 12000 W (three-phase 380V input)
Rated Output Current: 194 A
